CoreBlock CM5 combines a Raspberry Pi Compute Module 5, programmable DUT power, electrical measurements, and test interfaces in one compact Hardblocks module.

It runs Linux and HardPy, controls programmers and external instruments, powers the DUT from 1.25 to 32 V, and measures voltage, current, microcurrent, and resistance. Additional Hardblocks can be connected when the test system needs more switching, loads, or I/O.

Key specifications

• Raspberry Pi CM5 with Linux

• Programmable DUT power: 1.25–32 V, up to 3 A and 25 W

• Current measurement: 1 µA–3 A

• Voltage measurement: up to 80 V

• Resistance measurement: 1 Ω–2 MΩ

• USB, Ethernet, HDMI, MIPI, SPI, UART, I²C, and GPIO

• HardPy and SCPI support

• Modular Hardblocks expansion

• Open hardware and software

Electrical

• Power input: USB Type-C PD 3.0, 20 V / 5 A source

• CM5 power supply: 5 V, up to 5 A / 25 W

• Programmable DUT output: 1.25–32 V, up to 3 A / 25 W

• Adjustment step: 20 mV / 10 mA

• Output voltage ripple: up to 60 mV

• Low-voltage measurement: 6 channels, 0–27.5 V, 12-bit ADC

• High-voltage measurement: 1 channel, 0–80 V, 20-bit ADC

• Current measurement: 1 µA–3 A across two 20-bit ranges

• Resistance measurement: 1 Ω–2 MΩ, 12-bit ADC

Hardware

• Compute module: Raspberry Pi Compute Module 5

• Real-time controller: STM32G0B1

• Current measurement: INA229

• Security: TPM 2.0

• Storage: CM5 eMMC, microSD, and M.2 NVMe SSD support

• M.2 form factors: 2230 and 2242

• Separate compute and Measurement & Power boards

• Dedicated MCU controls DUT power, measurements, and low-level I/O independently from Linux

• Fixture-friendly HardBlocks 2U form factor

• Designed for integration into automated test fixtures or standalone workbench use

• Open hardware and open software design

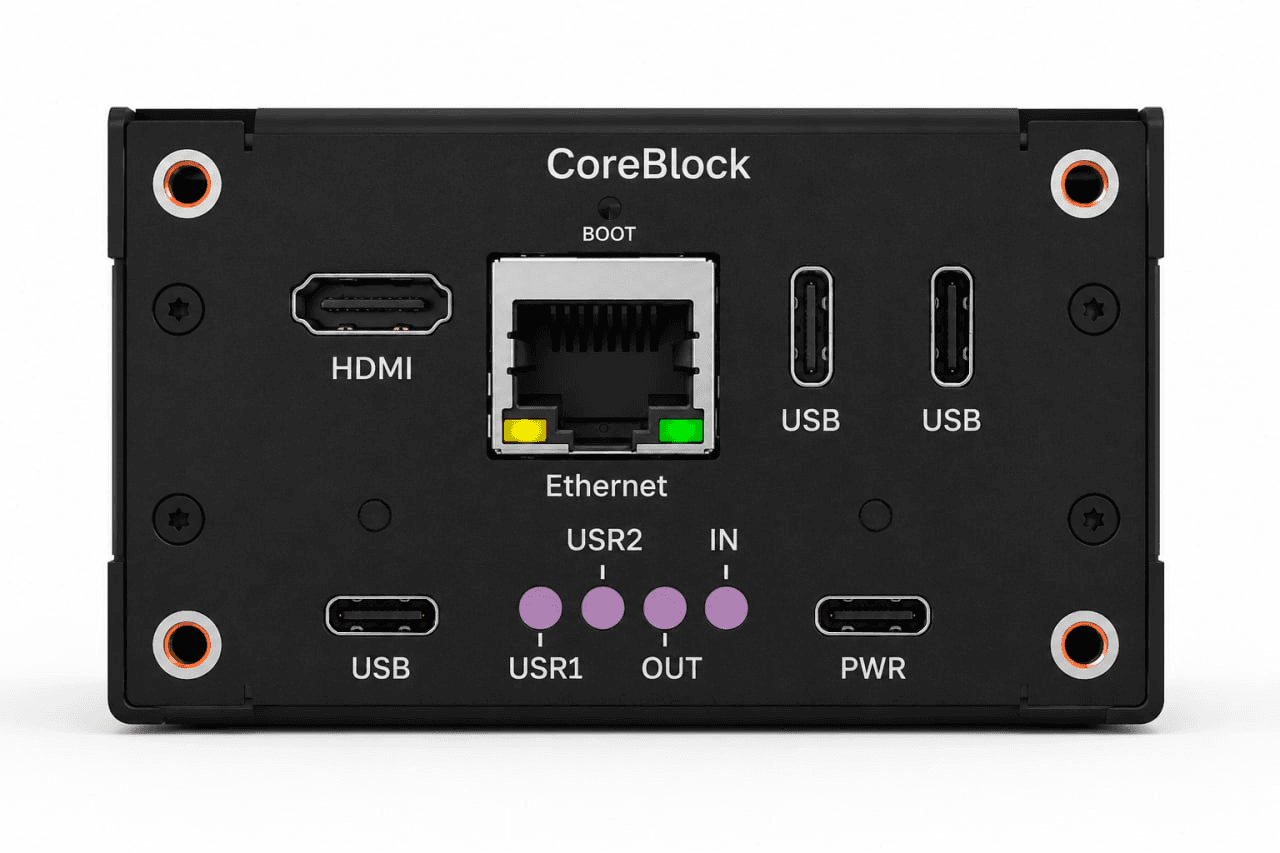

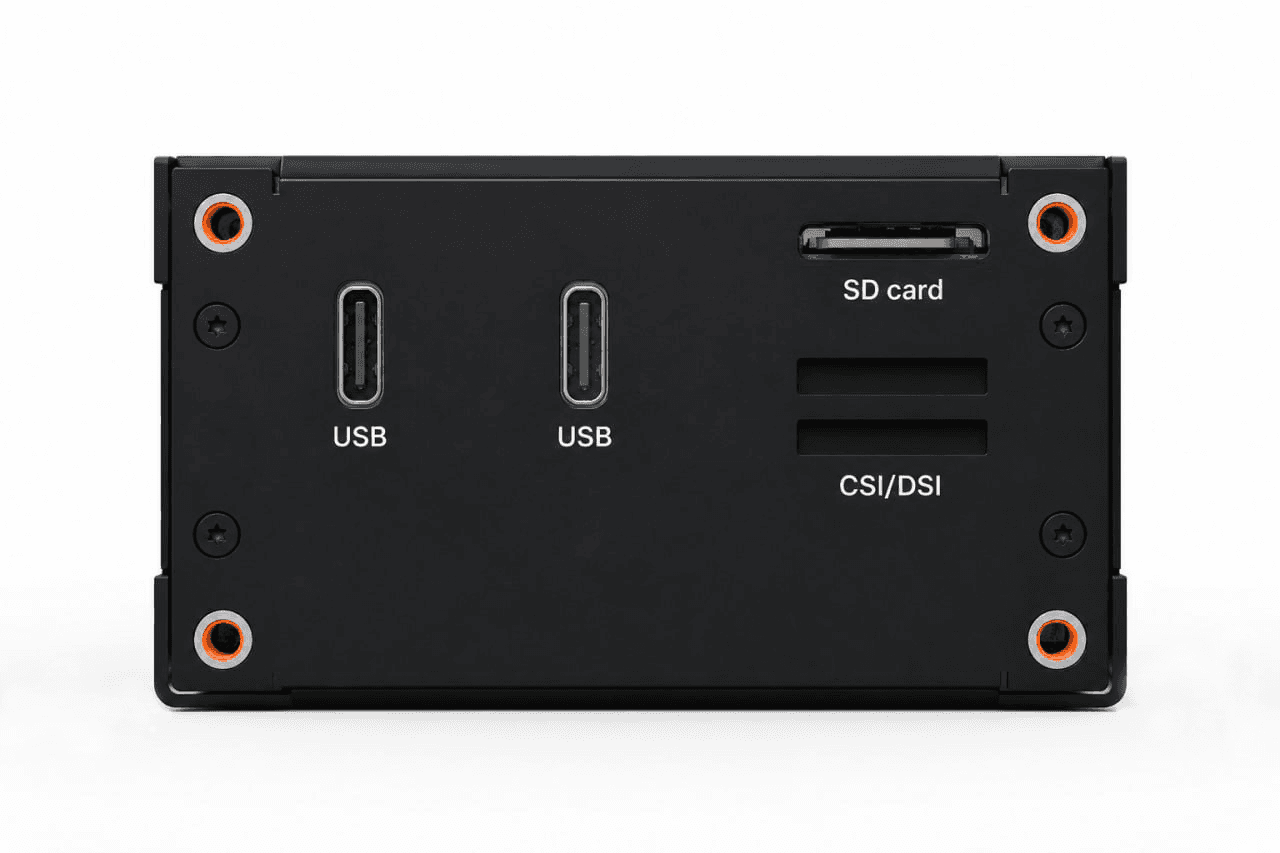

Interfaces & Ports

• 3 × USB 3 Type-C host ports

• USB 2 Type-C host/device port with CM5 USB boot support

• Additional USB 2 Type-C host port

• USB Type-C PD input and MCU service port

• Gigabit Ethernet

• HDMI display output

• 2 × MIPI CSI/DSI connectors for cameras or displays

• microSD card slot

• M.2 NVMe SSD slot

• External Wi-Fi / Bluetooth antenna connection

• 2 × 40-pin functional connectors for Raspberry Pi and measurement-board signals

• 2 × 10-pin USB control connectors for additional Hardblocks

• SPI, UART, I²C, and 3.3 V GPIO

• Functional connectors expose power, measurements, digital interfaces, and control signals
